Vehicle Specifications



VIN# XP29F8B395483

X - Car line : Charger SE - Magnum SE
P - Price class : Premium
29 - Body type : 2-door sports hardtop
F - Engine displacement : 318 Polysphere (60-66)
8 - Model year code : 1968
B - Assembly plant : Hamtrack MI
395483 - Sequence number (3 cars per day, car#95,483)

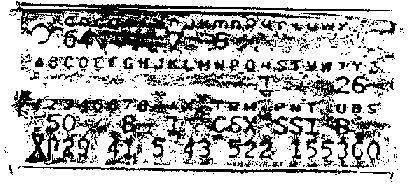

FENDER TAG



BLOCK SERIAL# CH43K9C109518

C - Car line : Chrysler Newport/New Yorker, (77-80)
H - Price class : High
43 - Body type : 4-door hardtop
K - Engine displacement : 440 (64-67)
9 - Model year code : 1969
C - Assembly plant : Jefferson
109518 - Sequence number (1 car per day, car#9,518


BLOCK CASTING# 2536430-7

2536430 - 1966-72, 440CID, RB

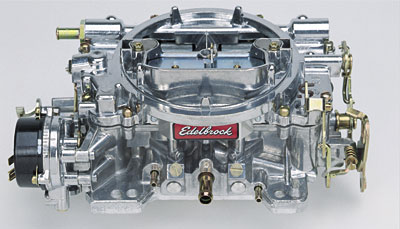

CARBURATOR# 1411 / Edelbrock 750cfm

Brand new Edelbrock carb to replace the old Holley. This one doesnt leak, has an elec. choke and lots more Umph!

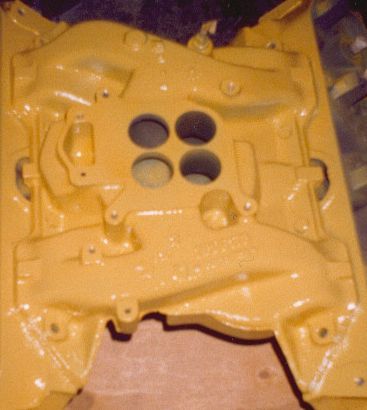

INTAKE MANIFOLD# 2806178

Stock 440 Chrysler manifold.

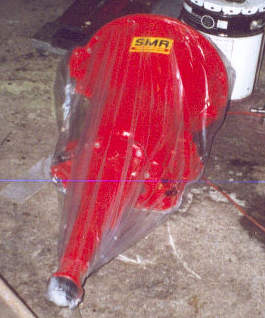

TRANSMISSION# PK3681866 4505 9521

727 AT - Street/strip transmission rebuilt by SMR.

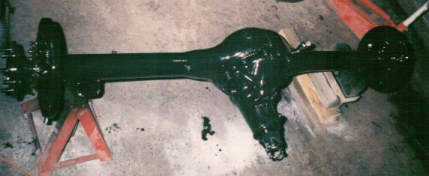

AXLE

8-3/4" Axle 3.55 gears

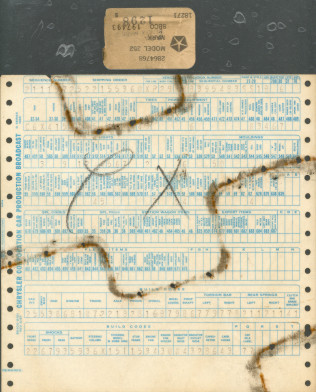

BUILD SHEET

Found under the rear seat.




SUMMARY

Engine Block - 1969 440
Crank - 3.75"
Cam - Mopar Performance Commando cam P4452783 A.D.=268/284 Lift=.450/.458
Heads - Stock Chrysler '906
Intake - Stock Chrysler cast iron intake
Pistons - Stock Chrysler 4.320 Aluminim Pistons w/ cast Chrysler rods
Carb - Edelbrock #1411 750 cfm
Ignition - Points type, Accel cap,rotor,points,wires, and Coil.
Fuel - 5/16" line, mechanical pump

Brakes - 4-Wheel manual drum
Wheels - 15" aluminum, 235/60/R15 BF-Goodrich Radial TA
Charging - GM Delco DC-10, 60 amp MAX output
Battery - 1987 Audio, trunk-mount, external vent tube, 700 CCA
Starter - mini-starter from late-model truck
Rad - 3-core, 26" Modine rad from 84-89 Wagoneer, with trans cooler
Fan - 17" High volume plastic-composite fan, with 1" aluminum spacer
Horn - stainless steel marine horn, mounted behind grill
Interior - black carpet,vinyl; lap belts; no headrests; no air; no rear defrost
Sound - 4 speaker, Sony det-face, remote-motor Herata power antannea
Alarm - Viper
